Why neodymium magnets are strong and how to compare them

Why are neodymium magnets so strong?

The Nd₂Fe₁₄B magnetic phase combines a large magnetization associated with iron with strong magnetic anisotropy associated with neodymium. Anisotropy means the magnetization prefers particular crystal directions. Together these help the material produce a strong magnetic response and retain a preferred direction rather than behaving like easily magnetized, easily demagnetized soft iron.^[6]

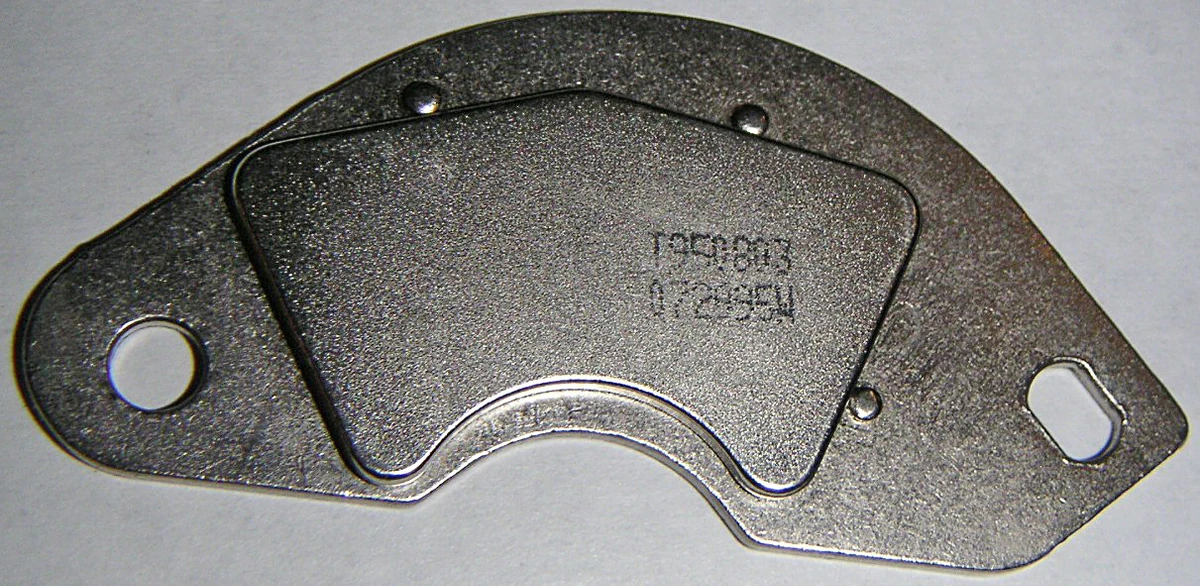

A manufactured magnet also needs an appropriate microstructure and magnetic orientation. The grade describes material properties; the finished size, pole direction and magnetic circuit determine how much useful field or force reaches the application.^[7]

A material-strength chart with a defined meaning

For one consistent example, K&J publishes the following maximum energy-product ranges. This compares material energy density, not the pulling capacity of three finished magnets.^[8]

These ranges cannot establish a universal “N52 is this many percent stronger” claim for holding, sensing or a motor. Hold geometry, temperature, target and measurement conditions constant before comparing the functional result. See the grade guide for suffixes.

Choose a metric that matches the task

BHmax is a material figure, not a scale reading from a finished part. Different volumes of the same material can share BHmax while delivering different total flux and application performance.^[2]

For a uniformly represented magnet in the usual magnetization convention, magnetic moment can be written as average magnetization M multiplied by volume, with units A·m². Some technical documents use a polarization-based convention and different units. Preserve the definition and method when comparing reports.^[1]

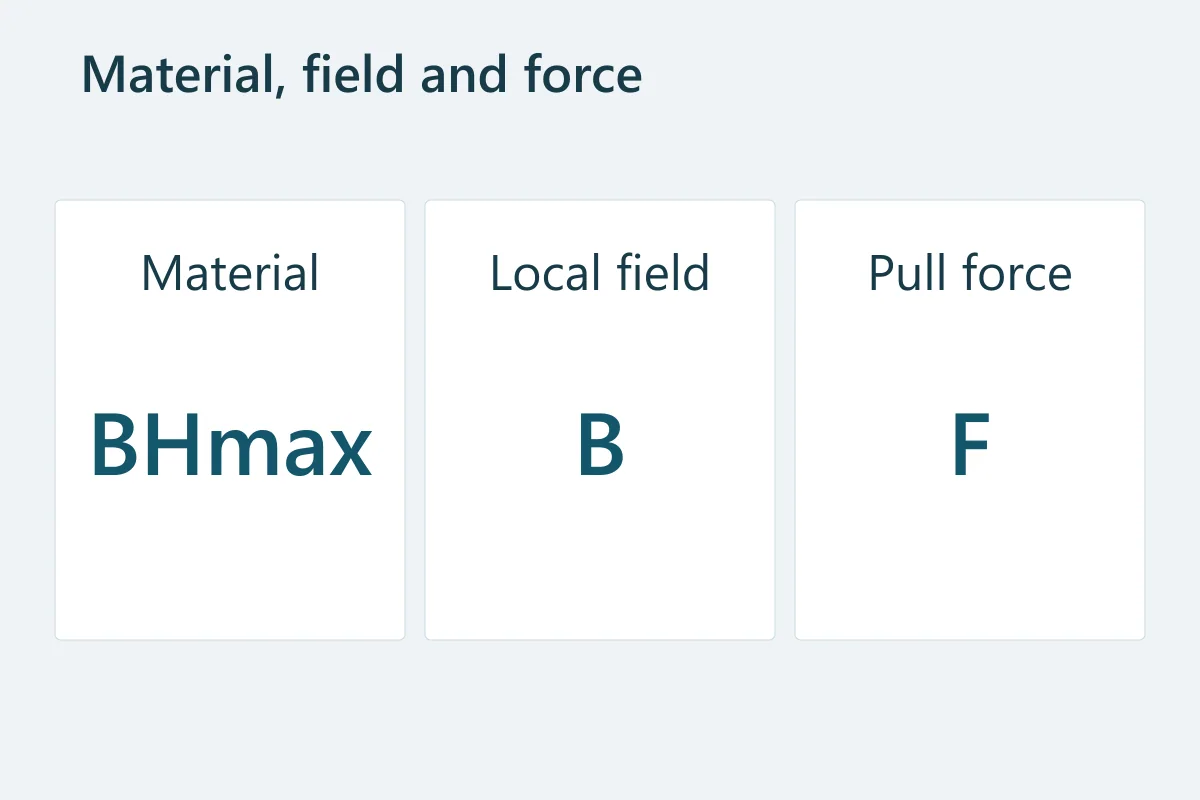

Why grade, gauss and pull can rank parts differently

A higher grade may improve a design where geometry and operating conditions are held comparable. Changing the shape or working gap can change the result more substantially. Even the same magnet produces different field values at different points.

A gaussmeter senses the field component over its active area. Probe distance, angle and location matter. A surface-centre reading, an edge reading and a measurement in the working air gap should not be presented as the same metric. Rings also need a meaningful defined measurement location rather than assuming the empty centre is a material surface.^[3]

Pull force additionally depends on the target and circuit. A material’s remanence is not the field everywhere in an air gap, and the force is not obtained by converting a gauss reading into kilograms without a defined model and geometry.

Define what “strong enough” means

Holding against steel

Specify steel, gap, contact condition, direction and required retention. Test sliding or peeling separately when relevant.

Operating a sensor

Specify field component or vector, operating window, position, temperature and motion.

A motor or coupling

Evaluate the magnetic circuit, temperature, opposing fields and assembled function against the design.

Comparing incoming parts

Use the agreed magnetic test, fixture, reference state and acceptance limits.

Adams distinguishes normal pull from a wall-mounted application where friction prevents sliding. That is one example of why a part can meet a catalogue pull rating and still be unsuitable for the intended mounting.^[4]

Make the comparison reproducible

1. Use the same functional target and metric.
2. Record material, dimensions, orientation and temperature.
3. Fix the probe position or the target, gap and fixture.
4. Identify whether each value is measured, calculated or only typical material data.
5. Repeat the measurement and compare against a stated requirement.

Calculators are useful for screening choices when their assumptions match the task. K&J’s tool, for example, limits particular calculations to axial geometries and warns against using approximate results as the sole design data.^[5]

Send the measurement you need to achieve with the drawing and conditions. That produces a more useful specification than asking for the “strongest magnet” without defining the job.
